ABOUT THIS VEHICLE

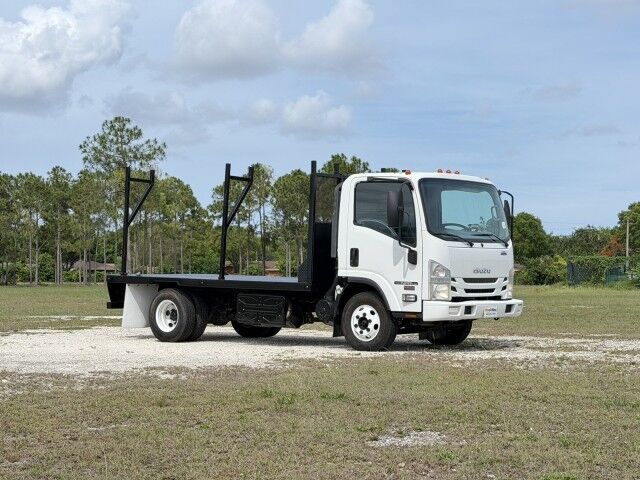

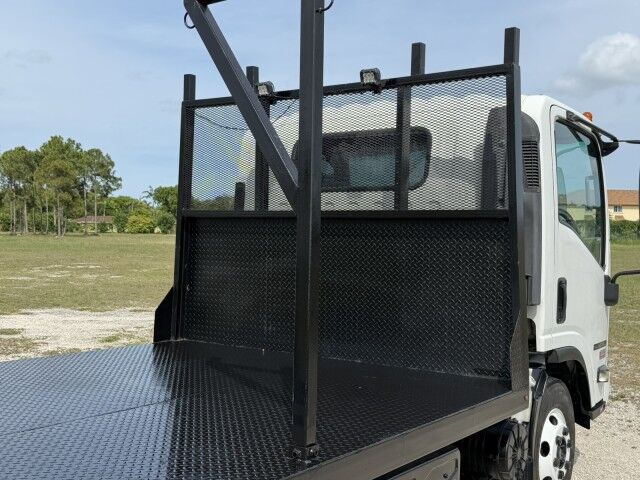

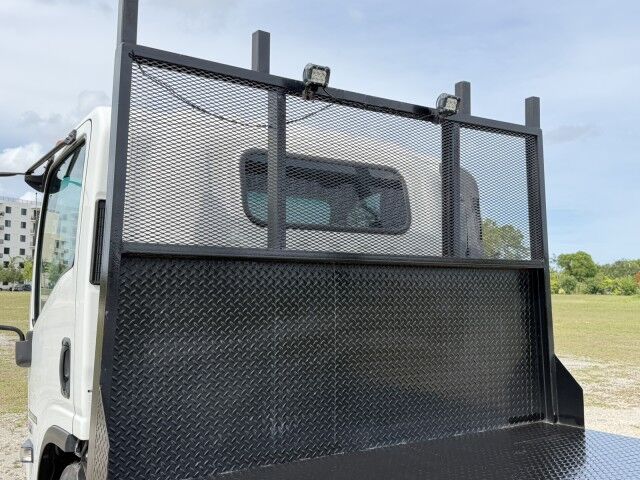

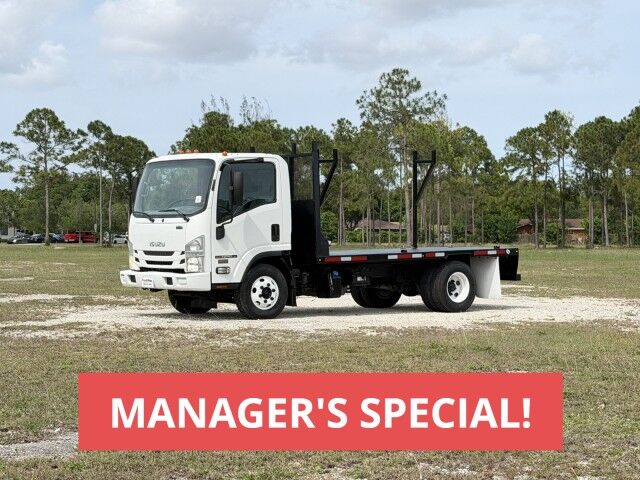

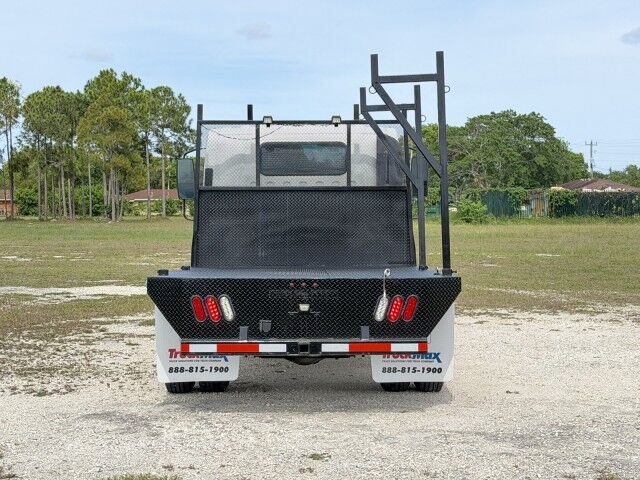

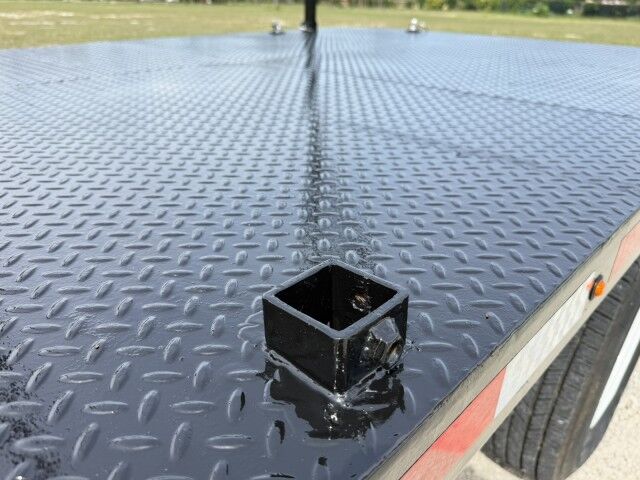

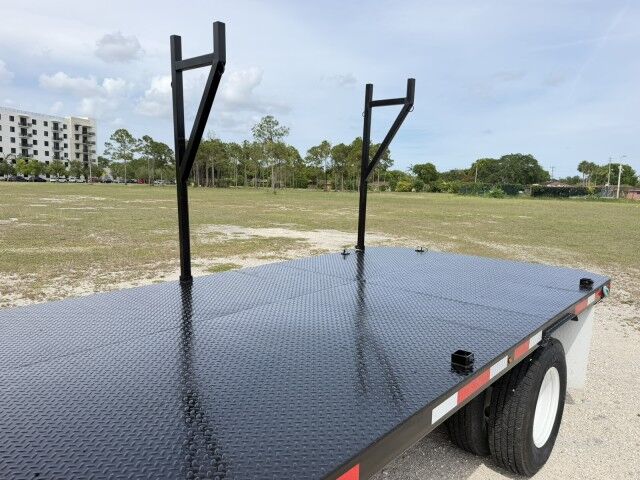

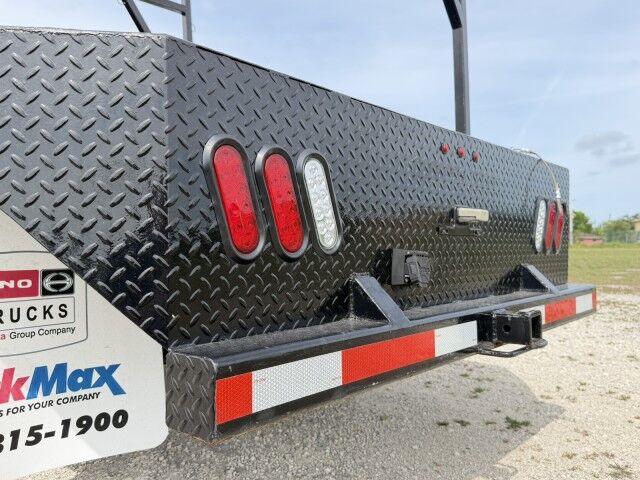

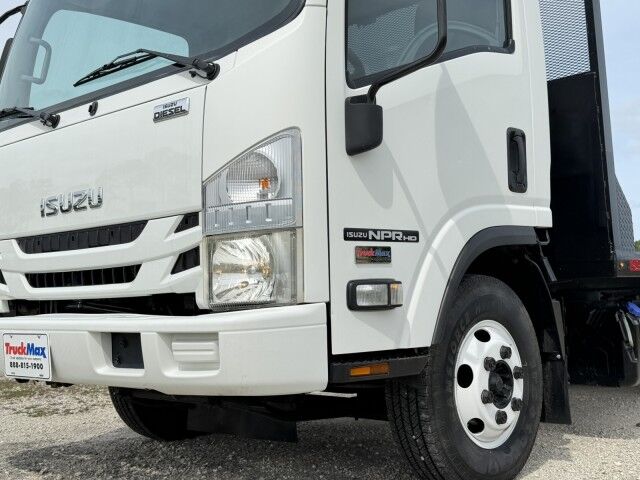

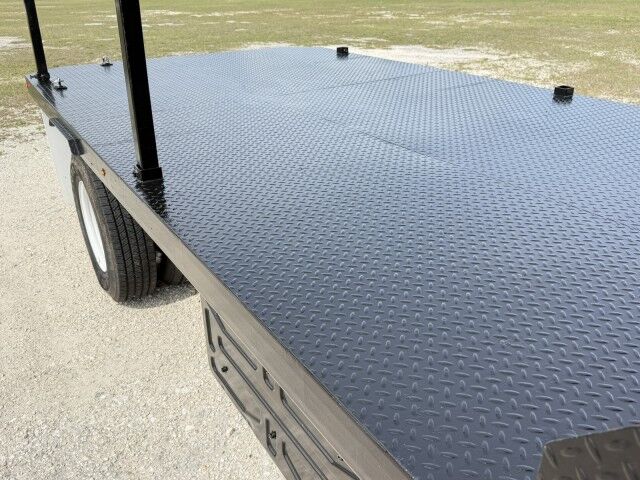

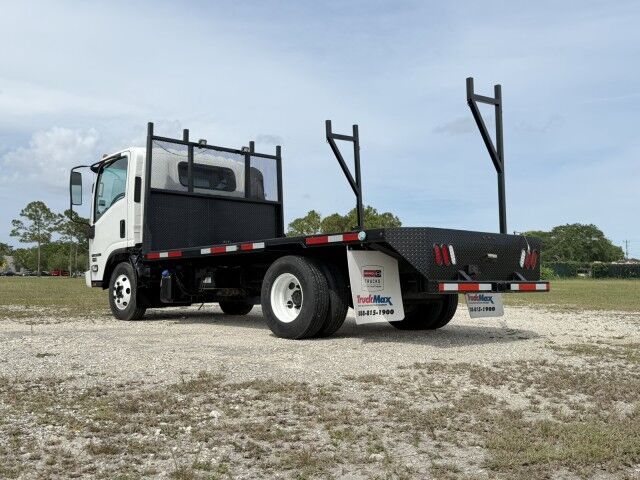

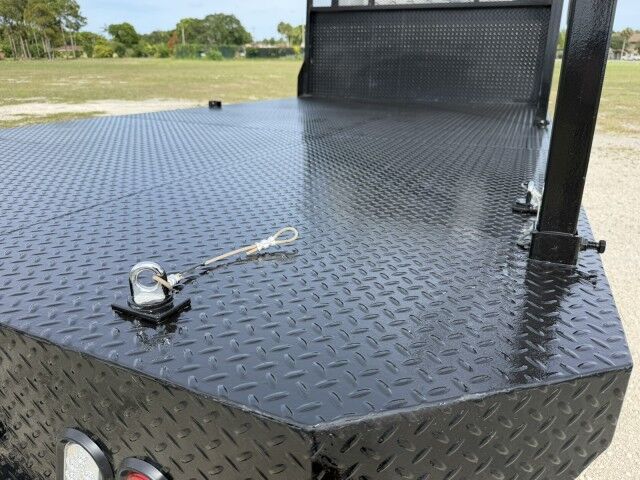

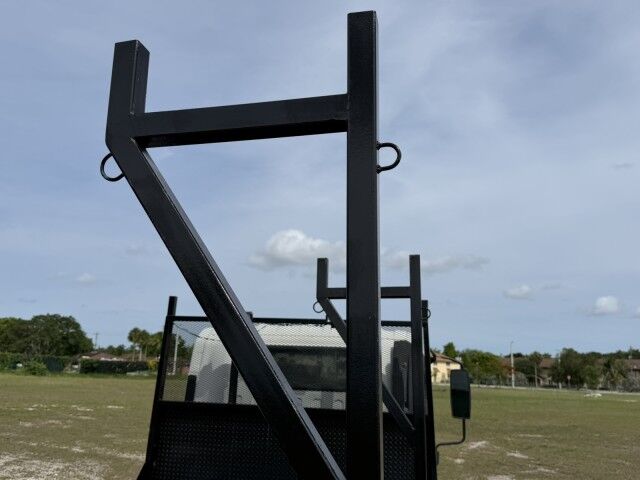

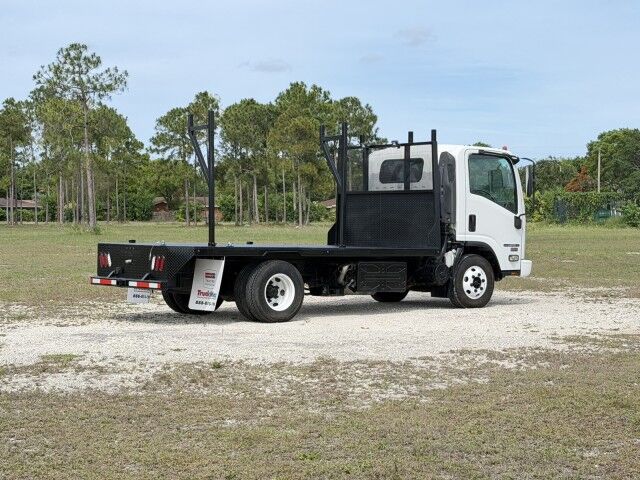

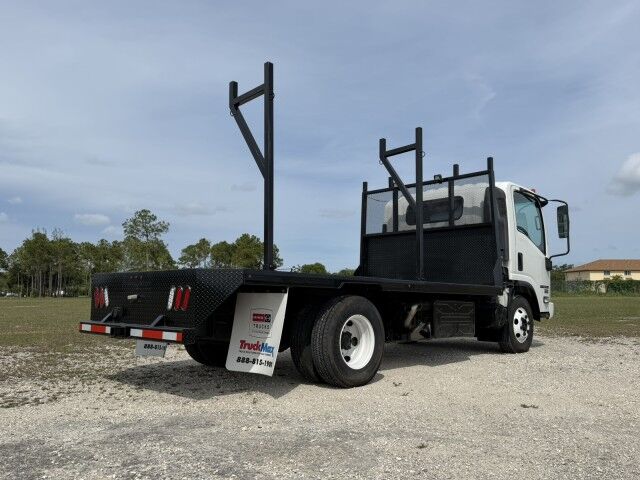

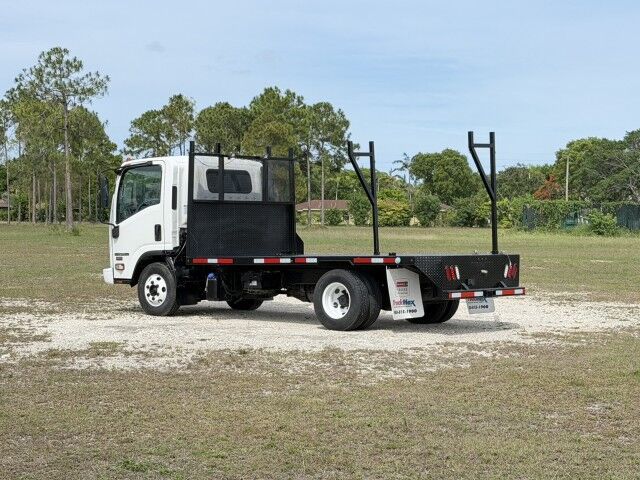

|14' Steel Flatbed Truck|
|4hk1-Tc Diesel Engine 317 Cid 5.19L 215hp At 2550 Rpm: 452 Ft-Lb Gross Torque At 1850 Rpm. 4-Cyl 16-Valve Four Cycle Overhead Cam Turbocharged Inter-Cooled Water Cooled Egr Valve DI Electronically Controlled Common Rail Fuel System And Engine Cruise Cont|
- 4 channel anti-lock brake system
- 4HK1-TC diesel engine 317 CID (5.19L) 215 HP at 2550 RPM: 452 ft-lb gross torque at 1850 RPM. 4 cylinder 16 valve four cycle overhead cam turbocharged inter-cooled water cooled EGR valve direct injection electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine Warning system with audible warning for low oil pressure high coolant temperature and low coolant level. Rear engine cover.
- Air Cleaner Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
- Alternator 140 AMP with integral regulator
- AM/FM/CD stereo radio
- Battery Dual 12-V maintenance free 750 CCA each
- Brake System Dual circuit vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
- Cab Mounts All steel low cab forward BBC 70.7 in. 45 deg. mechanical tilt with torsion assist
- Cruise control
- Daytime running lamps
- Daytime running lamps
- EBD (Electronic Brake Distribution)
- Exhaust Brake vacuum operated
- Exhaust System Single horizontal with DPF (Diesel Particulate Filter)
- Floor mats
- Front Axle Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
- Front GAWR 6630 lbs (3007 kg) capacity
- Front Suspension 8840 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.

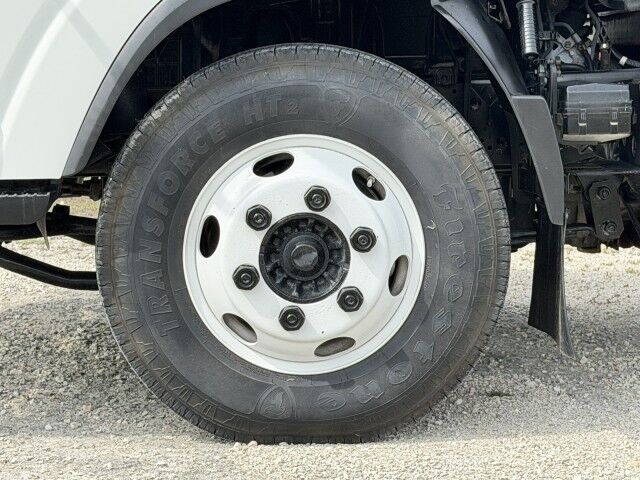

- Front Tires 225/70R19.5F (12 ply) LRR (low rolling resistance) tubeless steel belted radial all season
- Front Wheels 19.5" x 6" 6-hole disc painted white
- Fuel Tank 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.

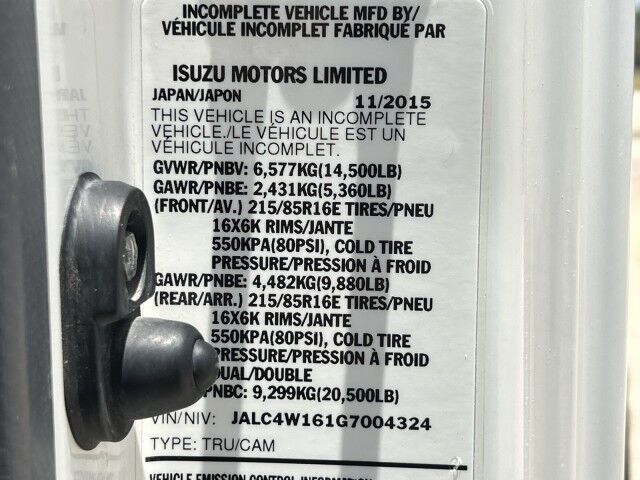

- GVWR 16000 lbs (7257 kg) capacity
- Isuzu Vehicle Health Report (Standard on all N-Series diesel trucks exclusive to Isuzu monitors the trucks performance and driver behavior. Reports provide detailed information on engine operation braking emissions fuel economy acceleration & deceleration frequency idling and speed history. Ask your Isuzu dealer to provide you with an Isuzu Vehicle Health Report at your next service.)
- Mirrors Dual cab mounted exterior with integral convex mirror

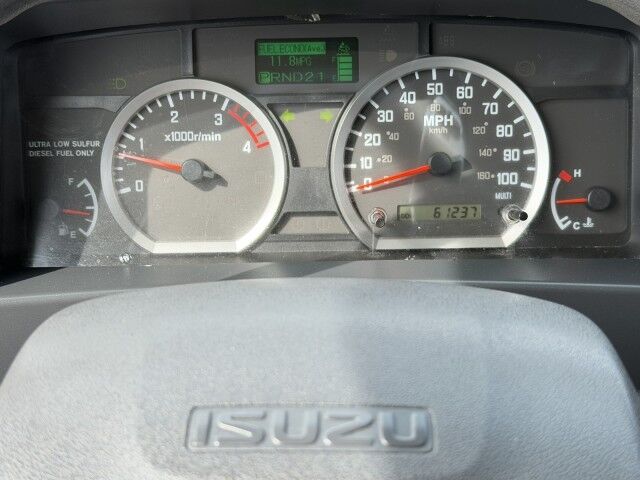

- Multi-Information Display (MID) (monitors vital functions including diesel exhaust fluid levels (DEF) particulate matter emissions level in the diesel particulate filter (DPF) diesel particulate filter regeneration service reminders for engine oil transmission oil differential oil power steering fluid engine oil filter and fuel filters. The MID provides fuel economy reporting by average instant and trip.)
- Paint Scheme Solid
- Power windows & door locks
- Rear Axle R040 Full-floating single-speed 11020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
- Rear Axle Ratio 4.77:1
- Rear GAWR 11020 lbs (4999 kg) capacity
- Rear Suspension 14308 lbs. (6490 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.
- Rear Tires 225/70R19.5F (12 ply) LRR (low rolling resistance) tubeless steel belted radial all season
- Rear wheel drive

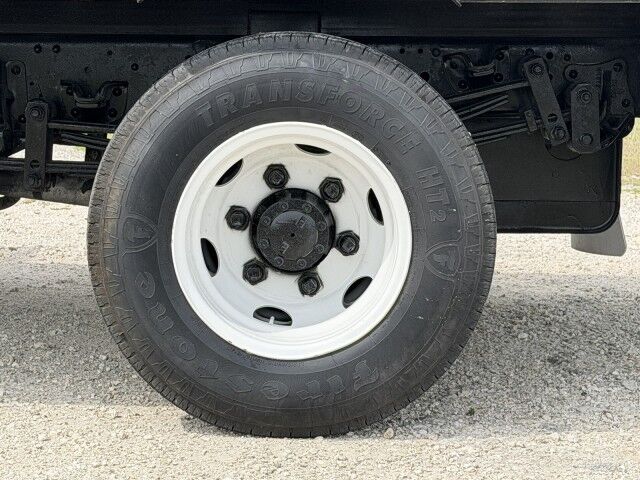

- Rear Wheels 19.5" x 6" 6-hole disc painted white

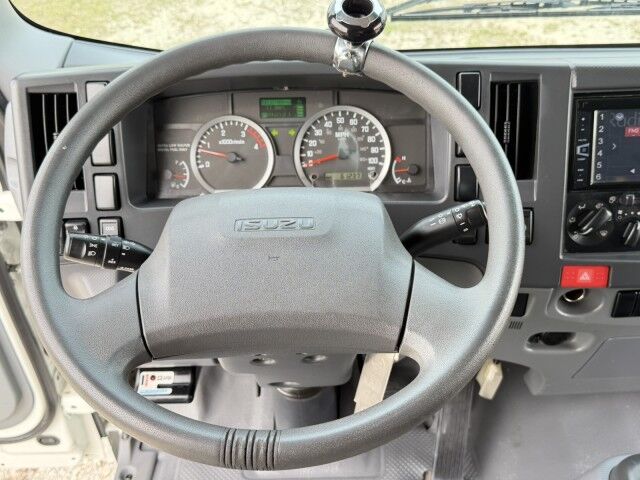

- Tilt and telescoping steering column

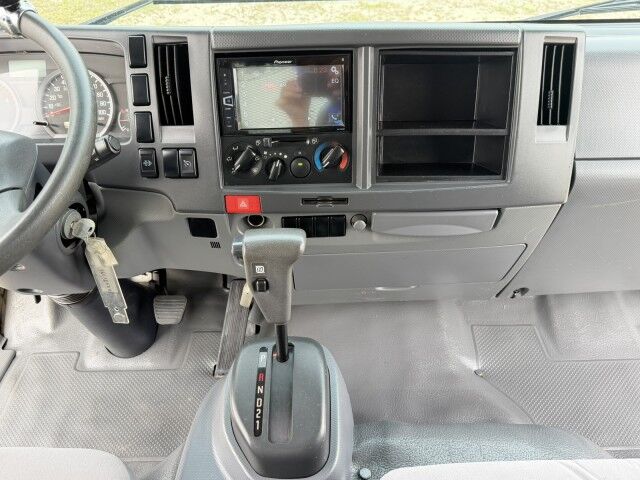

- Transmission Automatic Aisin A465 6-speed. Ratios: 3.742 2.003 1.343 1.000 0.773 0.634 Rev 3.539

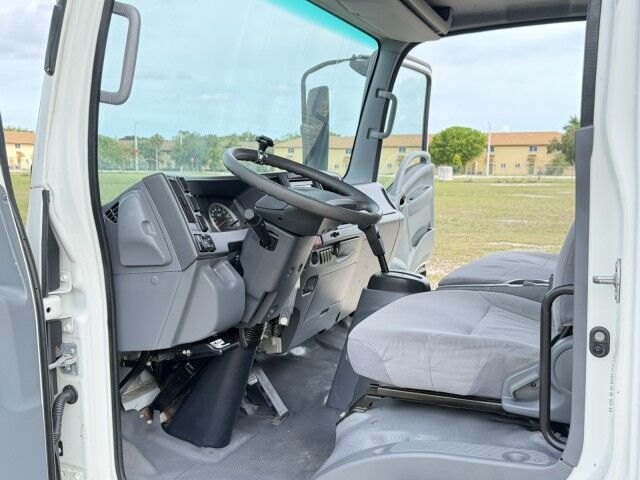

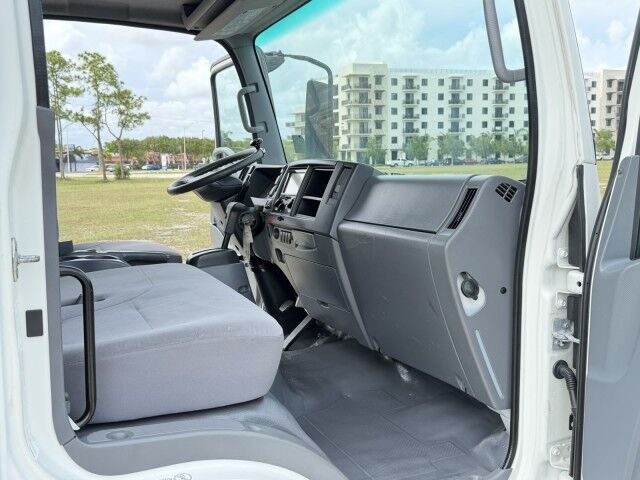

- Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seat
- Truck Application
- Wheelbase 109" (276.9 cm) includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44000 psi section modulus 7.20 cu. in. and RBM 316800 lb-ft/in per rail.
- Windows Tinted glass
- Windshield Wipers Intermittent wet-arm
